In this project, we implement a simple PDM to PCM converter (PDM2PCM) based on the Migen FHDL library and LiteX toolbox. We've utilized the CIC filter as a primary component and provided source code support for flexible input parameter adjustment. In addition, the simulation part illustrates how to verify the results of a design, and finally, deploy it onto a specific FPGA hardware platform for demonstration.
• Ubuntu 18.04 LTS or later.
• Python 3.x
$ sudo apt install build-essential device-tree-compiler wget git python3-setuptools python3-pip libftdi* libboost-all-dev
$ sudo apt-get install libeigen3-dev aptitude clang tcl tcl8.6-dev libreadline-dev flex bison gcc-multilib g++-multilib
$ pip3 install numpy matplotlib scipy$ sudo apt install verilator
$ sudo apt install libevent-dev libjson-c-dev
$ sudo apt install gtkwave$ mkdir toolchains
$ cd toolchains
$ git clone --recurse-submodules https://github.com/YosysHQ/icestorm.git
$ cd icestorm
$ make -j$(nproc)
$ sudo make install$ tar -xvf v3.20.1.tar.gz
$ CMake-3.20.1
$ ./bootstrap
$ ./configure
$ make -j$(nproc)$ cd toolchains
$ git clone --recursive https://github.com/YosysHQ/prjtrellis
$ cd prjtrellis/libtrellis
$ cmake -DCMAKE_INSTALL_PREFIX=/usr/local .
$ make -j$(nproc)
$ sudo make install$ cd toolchains
$ git clone --recurse-submodules https://github.com/YosysHQ/nextpnr
$ cd nextpnr
$ cmake -DARCH="ice40;ecp5" -DCMAKE_INSTALL_PREFIX=/usr/local .
$ make -j$(nproc)
$ sudo make installhttps://github.com/gatecat/nextpnr-xilinx$ cd toolchains
$ git clone --recurse-submodules https://github.com/YosysHQ/yosys.git yosys
$ cd yosys
$ make -j$(nproc)
$ sudo make install$ sudo nano /etc/udev/rules.d/99-my-usb.rules
Add line:
SUBSYSTEM=="usb", ATTR{idVendor}=="0403", ATTR{idProduct}=="6010", MODE="0666"
$ sudo udevadm control --reload-rules
$ sudo service udev restart$ mkdir workdir
$ cd workdir
$ git clone https://github.com/kamejoko80/litex-pdm2pcm.git
$ cd litex-pdm2pcm
$ chmod a+x litex_setup.py
$ ./litex_setup.py dev init install --user- Build environment structure is oganized as below:
.
+-- workdir
¦ +-- litex
¦ +-- litex-boards
¦ +-- litex-pdm2pcm
¦ +-- migen
+-- toolchains
+-- icestorm
+-- nextpnr
+-- prjtrellis
+-- yosys• litex : A colection of Litex's libraries.
• litex-boards : Defined different FPGA HW platforms.
• migen : Mignen FHDL library.
• toolchains : Open source verilog HDL synthesizer (yosys), place and router (nextpnr) ...- Project folder structure:
.
+-- LICENSE
+-- README.md
+-- custom_boards
¦ +-- platforms
¦ +-- icestick.py
+-- custom_ipcores
¦ +-- pdm.py
+-- custom_projects
¦ +-- pdm_to_pcm_icestick.py
+-- litex_setup.py• custom_boards : Defined custom FPGA HW platform.
• custom_ipcores : Custom FHDL ipcore source code.
• custom_projects : Custom FPGA project.PDM is a digital audio representation that represents audio as a stream of 1s and 0s, where the density of 1s in a time interval represents the amplitude of the audio signal. It's typically used in digital microphones. Each rising or falling edge of the PDM signal represents a change in the audio waveform. Before converting PDM to PCM, it's common to apply a low-pass filter to the PDM data. This filter helps remove high-frequency noise and smooth out the signal. The specifics of the filter design depend on your hardware and requirements. PDM data is usually sampled at a very high rate (often in the megahertz range), which is much higher than the typical audio sample rate (e.g., 44.1 kHz for CD-quality audio). Decimation is the process of reducing the sample rate of the PDM data to match the target PCM sample rate. CIC filter has 2 above characteristics and there are some advantages such as high performance, resource, and power efficiency... Furthermore, it does not require complex operations, including multiplication, division, and floating-point coefficients, so it is definitely suitable for FPGA applications. Refer to this link for the details of how the CIC filter circuit works.
In the project, the CIC filter has been implemented as the below block diagram:
I/O signals:
• input : PDM signal input (one-bit data)
• sys_clock : FPGA sync clock input.
• fs : Signal input sample frequency.
• output : PCM signal output (n-bit data)
• valid : Pulse indicates that the output signal is valid.
Parameters:
• M : Number of stages.
• R : Decimation ratio.
• W : Output data width.
###################################################################################################################
#
# CONFIGURABLE CIC FILTER IMPLEMENTATION WITH A SEPARATED SAMPLING FREQUENCY INPUT
#
# Block diagram:
# Integrators Decimator Combs
# _____________/\____________ __/\___ ___________/\___________
# / \ / \ / \
# ____ _____
# input | | intg[0] intg[M-1] | | comb[0] comb[M-1] output
# ------>----|buff|--->(+)-------O---->...(+)-------O-------------| ↓R |-------O---->(+)........---O---->(+)------>
# | | | __|__ | __|__ |_____| __|__ |- __|__ |-
# |->|____| | | | | | | | | | | | | | |
# | ^ | Z-1 | ^ | Z-1 | | | | Z-1 | ^ | Z-1 | ^
# | | |->|_____| | |->|_____| | | |--->|_____| | |----->|_____| |
# | | | | | | | | | | | | | | |
# | |__|_____|di[0] |__|_____|di[M-1] | | | dc[0] |______| | dc[M-1] |______|
# | | | | | | |
# O----------------O------------------O | | O-----------------O
# | | | | valid
# sys_clk _____ | | O-------------------|------------------------->
# --------| | | | |
# fs | & |----------O shift_1 | ena _____ |
# --------|_____| O---------| | |
# sys_clk | & |-----O shift_2
# ----------|_____|
# Pulse diagram:
# _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _
# sys_clk _| |_| |_| |_| |_| |_| |_| |_| |_| |_| |_| |_| |_| |_| |_| |_| |_| |_| |_| |_| |_| |_
# ___ ___ ___ ___ ___
# fs _________| |___________| |____...____| |___________| |___________| |_______
# ↑ ↑ ↑ ↑ ↑
# cnt 0 1 R-1 0 1
# sample[0] sample[1] sample[R-1]
# ___
# shift_2 _____________________________________________________________| |_______________
# ___
# valid _________________________________________________________________| |___________
# ↑
# valid output
#
###################################################################################################################The below block diagram shows how all components are connected together, PDM data input from DMIC (I used Merry 88D201020001). Depending on pdm_sel, the PDM output data is valid at the rising/falling edge of pdm_clk. PCM output is connected directly to the I2S module. The sampling frequency can be defined in module PDM_TO_PCM(), value is about 1.5MHz - 2.4MHz. The output I2S signals can be connected with a simple DAC IC such as MAX98357A. The CIC includes 2's complement integer add/subtract, to ensure that the output does not overflow, its bit width needs to satisfy the following condition:
nbit = 1 + math.ceil(M * math.log2(R))In general, the bit width of I2S input is 8, 16, and 24 so we need to scale down the CIC output before feeding the PCM data into the I2S module. It is simply defined by a scale_factor parameter:
self.sync += [
If(cic.valid,
buff.eq(cic.output >> math.ceil(math.log2(scale_factor))),
i2s_pulse_ena.eq(1),
),
...
###################################################################################################################
#
# PDM TO PCM CONVERTER
#
# Block diagram:
# ____________ _______
# input | | output | |
# pdm_dat --->-------------------------| |---------->| |-------> i2s_sck
# fs | CIC_FILTER | valid | I2S |-------> i2s_ws
# o----| |---------->| |-------> i2s_so
# | |____________| |_______|
# _________ |
# sys_clk ---->----| |-----o
# | CLK_GEN |---------------------------------------------------> pdm_clk
# ena ---->----|_________|---------------------------------------------------> pdm_sel
#
#
# Pulse diagram:
# _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _
# sys_clk _| |_| |_| |_| |_| |_| |_| |_| |_| |_| |_| |_| |_| |_| |_| |_| |_| |_| |_| |_| |_
# ↑ ↑ ↑
# cnt 0 1 ... N-1
# ___ ___ ___ ___ ___
# fs _____| |___________| |___________| |___________| |___________| |_______
# _______ _______ _______ _______ _______
# pdm_clk (drive_f) _____| |_______| |_______| |_______| |_______| |___
# _____ _______ _______ _______ _______ ___
# pdm_clk (drive_r) |_______| |_______| |_______| |_______| |_______|
#
#
#
###################################################################################################################Let's start to simulate and verify the design. First, modify the main function (in pdm.py) as below:
dut = CIC_FILTER(M=3, R=64, W=8)
run_simulation(dut, CIC_FILTER_TB(dut), clocks={"sys": int(1e9/6400e3)}, vcd_name="CIC_FILTER.vcd")
Parameter descriptions:
# CIC filter parameters
M = 3 # number of stage
R = 64 # decimination
gain = (R * 1) ** M
# signal frequency
f1 = 100 # Hz
f2 = 4e3 # Hz
f3 = 50e3 # Hz
f4 = 100e3 # Hz
a = 2
The input signal includes some frequency components and white noise,
the input sampling frequency is fs_in = 640KHz, output sampling frequency = fs_in/R = 10KHz.Execute the below commands to run the simulation:
$ cd workdir/litex-pdm2pcm/custom_ipcores
$ python3 pdm.py
The output response shows that higher-frequency components (> 5Khz) have been removed completely. Also, there is a .vcd file has been generated as a result of the simulation command, We can verify the details of the internal signals as well.
$ gtkwave CIC_FILTER.vcd
To verify the actual HW design, let's go with the simulation test bench below:
dut = PDM_TO_PCM(sys_clk_freq=96000e3, fs_in=2400e3, M=5, R=50, dw=16, scale_factor=1e6)
run_simulation(dut, PDM_TO_PCM_TB(dut, sys_clk_freq=96000e3, fs_in=2400e3, M=5, R=50, dw=16, scale_factor=1e6), clocks={"sys": int(1e9/96000e3)}, vcd_name="PDM_TO_PCM.vcd")The parameters are set closely to real-world conditions:
• sys_clk_freq : FPGA sync frequency = 96MHz
• fs_in : PDM oversampling rate = 2.4MHz (pdm_clk)
• M : CIC stages = 5
• R : Decimation ratio = 50 => fs_out = 48KHz
• dw : 16 bit PCM data output
• scale_factor : scale_factor = 1e6 The input includes some sinusoidal frequency components 5KHz, 10KHz, 15KHz, and 50KHz, background noise is also added. The test bench function PDM_TO_PCM_TB() converts input to the PDM data before feeding into the CIC filter, in result We have the input/output as below:
With CIC stage = 5, we have a better filter output, not only higher-frequency but also background noise has been removed completely.
Finally, the internal signal waveform can be verified from the PDM_TO_PCM.vcd file.
In this project, we chose the ICE stick ICE40 as a HW platform. The synthesizable source code is located in the folder custom_projects/pdm_to_pcm_icestick.py.
HW connection:
HW components:
• DMIC : Merry 88D201020001
• I2S module : Adafruit MAX98357A
• ICE Stick : Lattice iCE40HX1K FPGA evaluation board.$ cd custom_projects
$ python3 pdm_to_pcm_icestick.py --buildAfter compiling the source successfully, a build folder is generated including a typical icestorm project build script, Verilog, FPGA pin assignment...
└── icestick
├── build_icestick.sh
├── icestick.asc
├── icestick.bin
├── icestick.json
├── icestick.pcf
├── icestick_pre_pack.py
├── icestick.rpt
├── icestick.v
└── icestick.ys
The FPGA resource is listed in a file named icestick.rpt
=== icestick ===
Number of wires: 139
Number of wire bits: 1379
Number of public wires: 139
Number of public wire bits: 1379
Number of memories: 0
Number of memory bits: 0
Number of processes: 0
Number of cells: 1215
SB_CARRY 303
SB_DFF 1
SB_DFFE 369
SB_DFFESR 27
SB_DFFSR 4
SB_LUT4 510
SB_PLL40_CORE 1
To flash the FPGA bitstream, plug the ice stick USB connector into the Linux PC then execute the below command:
$ python3 pdm_to_pcm_icestick.py --flashAfter the programming is completed, connect the headphones or speaker to the MAX98357A's output then we can hear the sound.

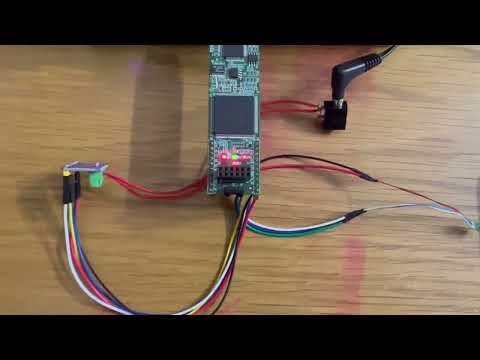

https://www.youtube.com/watch?v=zjK5RFyo3O0
We have implemented a simple PDM2PCM module to record audio from the DMIC and play it back through the speaker. With an FPGA, we can easily replicate the PDM2PCM module to build a microphone array system. Migen and LiteX are beneficial tools for FPGA developers, helping us reduce development time. Similarly, we can easily build digital filters because Migen is based on Python, allowing flexible module integration. Developers don't have to define as many ports as in the Verilog language.
